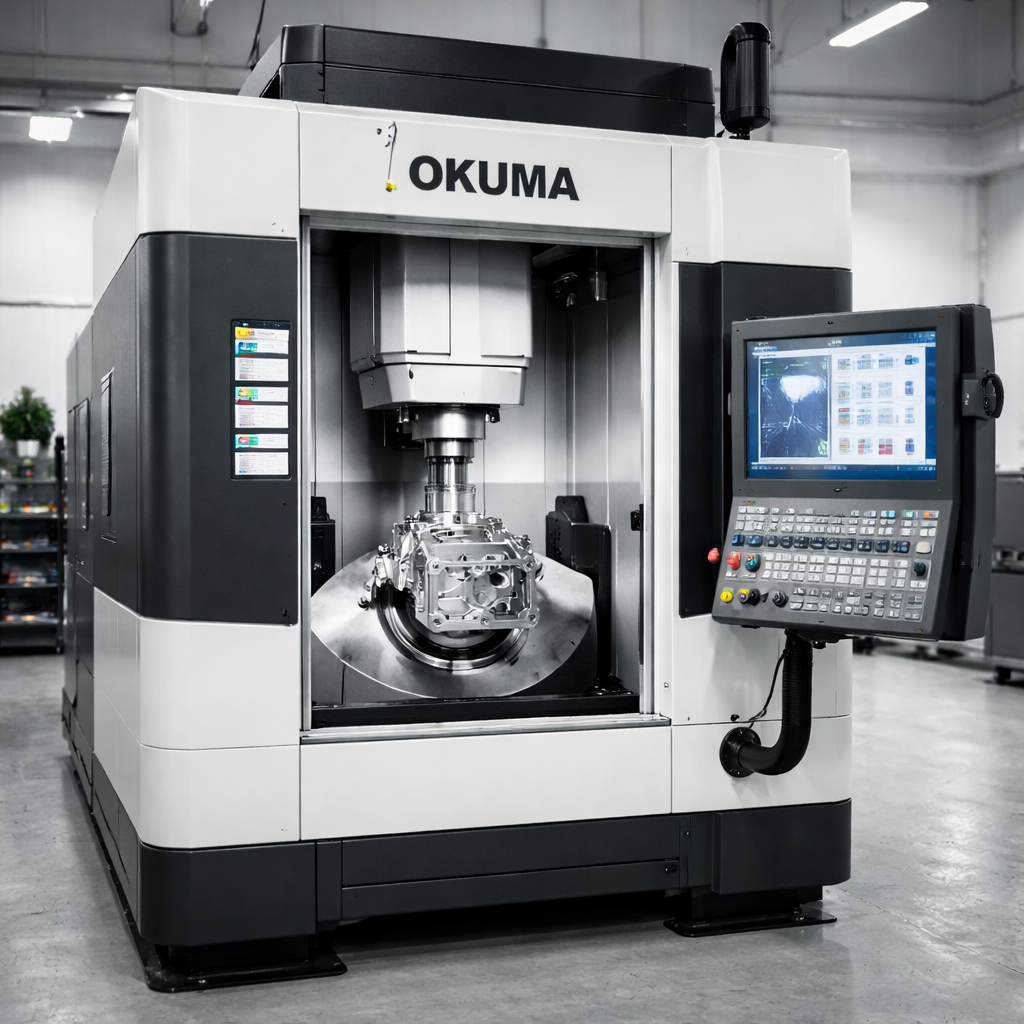

Advanced 5 Axis Machining for Complex Geometry
CARR’s 5-axis machining capabilities allow us to create detailed components with complex contours, organic curves, and compound angles. These features are critical for parts used in propulsion systems, structural assemblies, and automated machinery.
Through 5-axis milling, we achieve intricate shapes, angled surfaces, and deep pockets that would be impossible or inefficient with traditional setups. By cutting on multiple planes simultaneously, we reduce setups, maintain alignment, and improve both efficiency and accuracy throughout the production cycle.

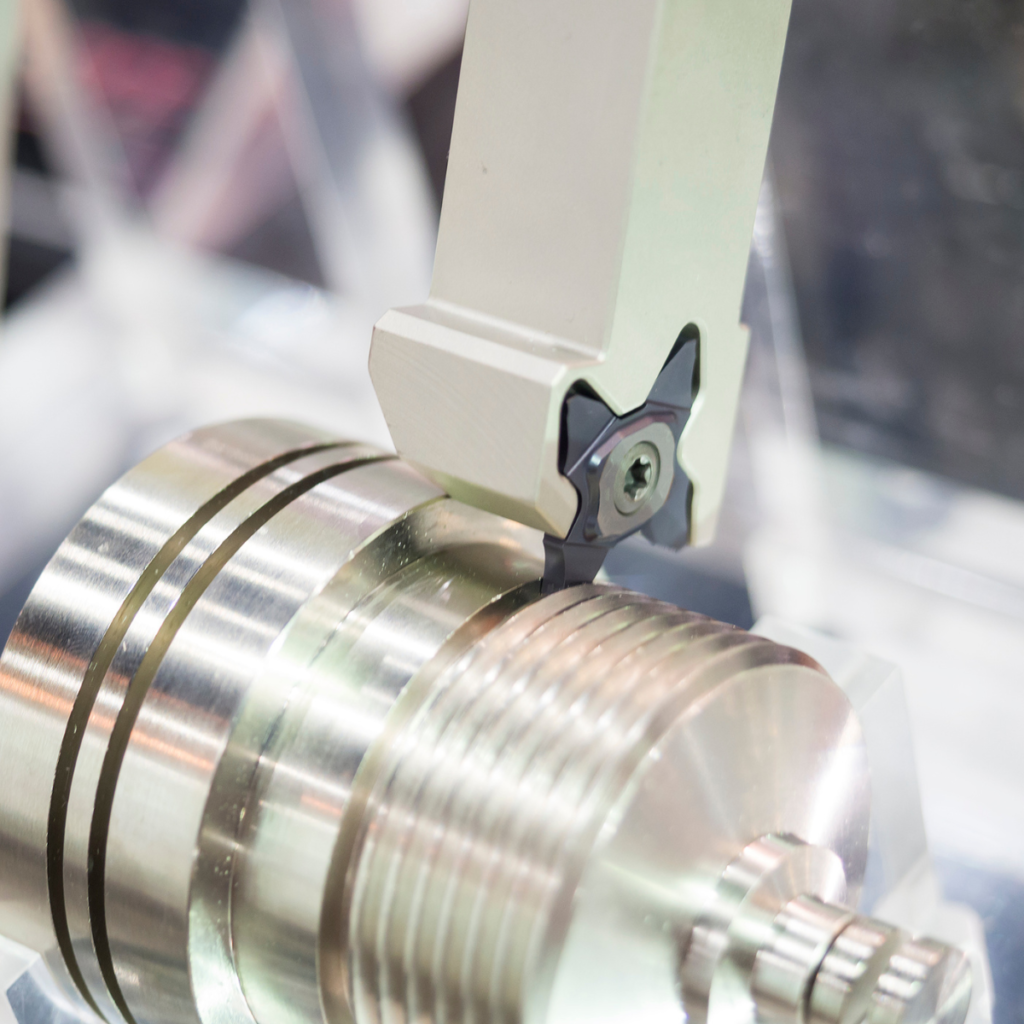

5-Axis Machining Expertise
CARR’s 5-axis machining capabilities allow us to create detailed components with complex contours, organic curves, and compound angles. These features are critical for parts used in propulsion systems, structural assemblies, and automated machinery.
Our machinists and engineers work closely together to plan each tool path and fixture arrangement. Using advanced CAM software, we simulate every operation to ensure optimal material removal, minimal tool wear, and precise control over surface finish.
This approach shortens cycle times, improves consistency, and allows for more innovative component designs, giving engineers the freedom to push boundaries without compromising manufacturability.
3+2 Positioning and Simultaneous 5-Axis Milling
5-axis CNC machining covers two different methods, and choosing the right one affects cost, cycle time, and finish.
- 3+2 (positional) machining: the rotary axes tilt the part to a fixed angle, then the machine cuts with three linear axes. This reaches five sides in one setup and holds tight relationships between features on different faces.
- Simultaneous 5-axis milling: all five axes move at once, so the tool stays normal to the surface through the cut. This is how we machine blended contours, organic surfaces, and undercuts with a uniform finish.
Our programmers pick the method per feature. Many parts use both: 3+2 for pockets and bores, simultaneous motion for the contoured surfaces.
WHEN A PART NEEDS 5-AXIS MACHINING
5-axis is the right call when a part has one or more of these features:
- Compound angles or holes that do not line up with a single face
- Undercuts and contoured surfaces a 3-axis tool cannot reach
- Deep cavities where tilting the part allows a shorter, stiffer tool
- Tight true position or profile tolerances between features on different faces
- Five sides that need machining without re-fixturing
Prismatic parts with features on one or two faces are often faster and less expensive on our 3-axis and 4-axis machines. We review every RFQ and recommend the process that fits the part.
MATERIALS WE MACHINE ON 5-AXIS CENTERS
Complex geometry often comes paired with difficult material. Our 5-axis programs are built around the alloy as much as the shape:
- Titanium and titanium alloys for flight hardware
- Inconel and other nickel-based superalloys for high-temperature parts
- Stainless and hardened steels for wear and structural components
- 7075 aluminum for lightweight housings and structures
Advantages of 5-Axis CNC Machining
- Fewer Setups: Multi-sided machining reduces repositioning and handling.
- Higher Accuracy: Continuous tool movement maintains alignment and dimensional integrity.
- Better Surface Finishes: Uniform tool engagement produces smooth, consistent results.
- Improved Efficiency: Shorter machining cycles and reduced fixturing time increase productivity.
- Design Flexibility: Supports highly complex shapes, undercuts, and contoured surfaces.
By using 5-axis CNC machining, CARR helps clients cut down lead times while maintaining aerospace-level precision and reliability.
Industries and Applications
Our 5-axis milling services support high-performance programs across multiple industries, including:
- Aerospace flight hardware and propulsion components.
- Defense and classified systems requiring traceability.
- Semiconductor equipment parts and precision tooling.
- Automated and robotic equipment assemblies.
- Space launch and satellite structures, brackets, and housings.
Each job is documented, inspected, and verified within our AS9100D-certified quality system.
QUALITY & PROCESS INTEGRATION
Inspection begins at the machine. In-process probing and digital verification confirm each part meets tolerance before leaving the spindle. Finished components undergo full coordinate measuring machine (CMM) inspection in a temperature-controlled lab for final verification. Every report, including first article inspection and production validation, is included in the project’s documentation package.
Partner with CARR Machine & Tool for 5-Axis Machining
CARR Machine & Tool’s 5-axis CNC machining capabilities bring advanced manufacturing to the industries that demand precision above all else. Our commitment to process control, material expertise, and continuous improvement means you receive components that meet specifications every time.
Contact us today to discuss your 5-axis machining needs or request a detailed quote for your next complex manufacturing project.
UNIQUE SOLUTIONS FOR UNIQUE PROBLEMS
Our multi-axis capabilities allow us to bring these tolerances to oddly angled parts and sub-assemblies.
